PREPARATION and SPECIFICATION

Appearance White amorphous powder, lyophilized
Activity Grade I　5.0U/mg-solid or more
Contaminants Leucine aminopeptidase ≤1.0×10-1%
Trypsin-like activity ≤1.0×10-1%

PROPERTIES

Stability Stable at −20℃ for at least one year (Fig.1)
Molecular weight approx. 78,000
Isoelectric point 9.1
Michaelis constants 2.5×10-5M (Z-Gly-Pro-MCA)
1.4×10-4M (Z-Gly-Pro-2NNap)
Structure Monomer
Inhibitors DFP, 3, 4-dichloroisocoumarin, Z-Gly-Pro-CH2Cl
Optimum pH 6.5 (Fig.2)
Optimum temperature 37℃ (40℃) 2) (Fig.3)
pH Stability 5.5−8.5 (30℃,15hr)(Fig.4)
Thermal stability below 40℃ (pH7.0,10min) (Fig.5)
Substrate specificity Y-Pro(Ala)-X (Y, peptide or N-protected amino acid; X, amino acid,
peptide, amide, or ester)(Table 1)
Effect of various chemicals (Table 2)

APPLICATIONS

This enzyme is useful for the determination of amino acid sequences of peptides and proteins containing proline residues.

ASSAY

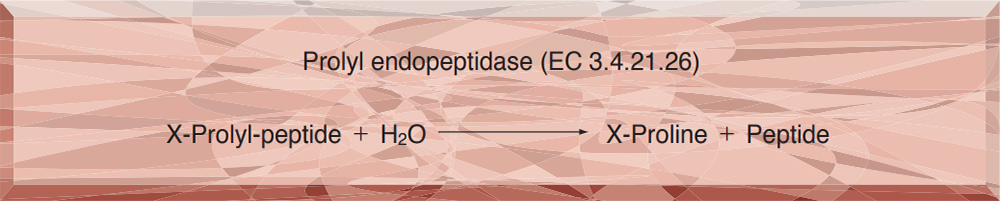

Principle

Principle

The appearance of p-nitroaniline is measured at 410nm by spectrophotometry.

Unit definition

One unit causes the formation of one micromole of p-nitroaniline per minute under the conditions described below.

Method

Reagents

A. K-Phosphate buffer, pH 7.0 0.1M
B. Z-Gly-Pro-pNA solution 5mM［Dissolve 21.3mg of Z-Gly-Pro-pNA(MW＝426.43) in ca.8ml of 40% dioxane in a hot bath at 60℃, then cool down to 25℃, fill up to 10ml with 40% dioxane］(Should be prepared fresh)
C. Acetate buffer, pH 4.0 1M solution containing 10% of TritonX-100 (Store at 5℃)
D. Enzyme diluent 50mM K-phosphate buffer, pH 7.0

Procedure

1.Prepare the following reaction mixture in a test tube, and equilibrate at 30℃ for about 5 minutes.

1.0 ml K-Phosphate buffer (A)
0.25ml Substrate solution (B)
Concentration in assay mixture
Phosphate buffer 77.8 mM
Z-Gly-Pro-pNA 0.926mM

2.Add 0.1ml of enzyme solution* and mix by gentle inversion.

3.After exactly 5 minutes at 30℃, add 2.0ml of acetate buffer (C) to stop the reaction and measure the optical density at 410nm against water (OD test).
At the same time, prepare the blank by first mixing the reaction mixture with 2.0ml of acetate buffer (C) after 5min-incubation at 30℃, followed by the addition of the enzyme solution (OD blank).

*Immediately before assay,dissolve the enzyme preparation in ice-cold enzyme diluent (D) and dilute to 0.05−0.2U/ml with the same buffer.

Calculation

Activity can be calculated by using the following formula :

  • Volume activity (U/ml) =

  • ΔOD (OD test−OD blank)×Vt×df

    5.57×1.0×t×Vs

  • ＝ ΔOD×1.20×df

Weight activity (U/mg) ＝ (U/ml)×1/C

Vt : Total volume (3.35ml)
Vs : Sample volume (0.1ml)
5.57 : Millimolar extinction coefficient of p-nitroaniline under the assay condition (cm2/micromole)
1.0 : Light path length (cm)
t : Reaction time (5 minutes)
df : Dilution factor
C : Enzyme concentration in dissolution (c mg/ml)

REFERENCES

1)T.Yoshimoto and D.Tsuru; Agric.Biol.Chem., 42, 2417 (1978)

2)T.Yoshimoto, R.Walter and D.Tsuru; J.Biol.Chem., 255, 4786(1980)

3)R.Walter; Biochim.Biophys.Acta.,422, 132 (1976)

4)T.Yoshimoto, R.C.Olowski and R.Walter; Biochem.J., 16, 2942 (1977)

5)T.Yoshimoto, M.Fischl, R.C.Olowski and R.Walter; J.Biol.Chem., 253, 3708 (1978)

6)T.Yoshimoto and D.Tsuru; Protein,Nucleic acid and Enzyme (Japanese), 29, 127 (1984)

7)L.Haeffiner-Gormley, L.Parente and D.B.Wetlaufer; Int.J.Peptide Protein Res., 26, 83 (1985)

8)T.Yoshimoto, K.Kawahara, F.Matsubara, K.Kado and D.Tsuru; J.Biochem., 98, 975 (1985)

Table 1. Substrate Specificity of Proline specific endopeptidase

Substrate Km
(mM)		 kcat
(s-1)		 kcat/Km
(mM-1・S-1)
↓
Pro-2NNap not hydrolyzed
Z-Pro-2NNap not hydrolyzed
Gly-Pro-2NNap not hydrolyzed
Z-Gly-Pro-MCA 0.025 115 4600
Z-Gly-Pro-2NNap 0.14 169 1212
Z-Gly-Pro-pNP 0.125 102 816
Z-Ala-Pro-2NNap 0.08 642 834
Z-D- Pro-2NNap 0.20 0.142 0.73
Ala-
Z-Ala-Gly-Pro-2NNap 0.29 192 664
Z-D-Ala-Gly-Pro-2NNap 0.14 38 271
Z-Gly-Pro-Leu 0.22 23 104
Z-Gly-Pro-Phe 0.74 180 250
Z-Gly-Pro-ALa 0.39 240 620
Z-Gly-Pro-D-Ala not hydrolyzed
Z-Gly-Pro-Leu-Gly 0.32 520 1600
Z-Gly-Pro-Leu-Ala 0.42 520 1100
Z-Gly-Pro-Leu-D-Ala 1.5 1600 1070
Z-Gly-Pro-Leu-Gly-Gly 1.4 700 500
Z-Gly-Pro-Leu-Gly-Ala 1.82 1000 550

Z, Carbobenzoxy; MCA, 4-Methyl-coumaryl-7-amide; 2NNap, β-Naphthylamide; pNP, p-Nitrophenyl ester.

Table 2. Effect of Various Chemicals on Proline specific endopeptidase

[The enzyme dissolved in 50mM K-phosphate buffer, pH 7.0 (2.5U/ml) was incubated with each chemical at 25℃ for 30min.]

  • Chemical Concn.(mM) Residual
    activity(%)
    None - 100
    Metal salt 2.0
    MgCl2 72.1
    CaCl2 74.6
    BaCl2 74.3
    FeCl3 52.6
    CoCl2 62.7
    MnCl2 68.9
    ZnSO4 56.8
    Cd(OAc)2 31.9
    NiCl2 66.8
    CuSO4 45.2
    Pb(OAc)2 59.8
    AgNO3 55.7
    HgCl2 0
    PCMB 2.0 71.9
    MIA 2.0 78.1
  • Chemical Concn.(mM) Residual
    activity(%)
    NaF 2.0 76.9
    NaN3 20.0 77.3
    DFP 1.0 2.7
    o-Phenanthroline 2.0 84.9
    α,α′-Dipyridyl 1.0 84.9
    Borate 50 73.4
    IAA 2.0 62.8
    NEM 2.0 74.4
    Hydroxylamine 2.0 77.4
    3,4-Dichloroiso-
    coumarin 2.0 9.0
    Triton X-100 0.10% 86.4
    Brij 35 0.10% 84.8
    Tween 20 0.10% 84.1
    Span 20 0.10% 81.9
    Na-cholate 0.10% 84.1
    SDS 0.05% 73.0

Ac, CH3CO; PCMB, p-Chloromercuribenzoate; MIA, Monoiodoacetate; DFP, Diisopropylphosphorofluoridate; IAA, Iodoacetamide; NEM, N-Ethylmaleimide; SDS, Sodium dodecyl sulfate.

  • Fig.1. Stability (Powder form)

    Fig.1. Stability (Powder form)

    (kept under dry conditions)

  • Fig.2. pH-Activity

    Fig.2. pH-Activity

    (30℃ in 50mM phosphate buffer)

  • Fig.3. Temperature activity

    Fig.3. Temperature activity

    (in 50mM phosphate buffer, pH 7.0)

  • Fig.4. pH-Stability

    Fig.4. pH-Stability

    30℃, 15hr-treatment with buffer solution: pH4.5-7.0, 50mM acetate;pH6.0-8.5, 0.1M phosphate

  • Fig.5. Thermal stability

    Fig.5. Thermal stability

    10min-treatment with 0.1M phosphate buffer, pH7.0 enzyme concn.:5U/ml

活性測定法（Japanese）

1. 原理

原理

p-Nitroanilineの生成量を410nmにおける吸光度の変化で測定する。

2.定義

下記条件で1分間に1マイクロモルのp-Nitroanilineを生成する酵素量を1単位(U)とする。

3.試薬

  • 0.1M K-Phosphate緩衝液，pH7.0
  • 5mM Z-Gly-Pro-pNA溶液〔21.3mgのZ-GlyPro-pNA(MW＝426.43)を60℃の湯浴中で約 8mlの40％ジオキサン蒸留水に溶解する。本溶解液を25℃まで冷却した後,40％ジオキサンで10mlとする〕(用時調製)
  • 10％ トリトンX-100を含む1M酢酸緩衝液， pH4.0
  • 酵素希釈液〔50mM K-Phosphate緩衝液， pH7.0〕

酵素溶液：酵素標品を予め氷冷した酵素希釈液(D) で溶解し,分析直前に同緩衝液で0.05〜 0.2U/mlに希釈する。

4.手順

1.試験管に下記反応混液を調製し,30℃で約5分間予備加温する。

1.0 ml K-Phosphate緩衝液 (A)
0.25ml 基質溶液 (B)

2.酵素溶液0.1mlを加え，反応を開始する。

3.30℃で正確に5分間反応させた後，酢酸緩衝液 (C)2.0㎖を加えて反応を停止させる。この液につき 410nmにおける吸光度を測定する(ODtest)。

4.盲検は反応混液①を30℃で5分間加温後,酢酸緩衝液(C)2.0㎖を加えて混和し,次いで酵素溶液0.1㎖を加えて調製する。この液につき以下上記同様に吸光度を測定する(ODblank)。

5.計算式

  • U/ml =

  • ΔOD (OD test−OD blank)×3.35(ml)×希釈倍率

    5.57×1.0×5(分)×0.1

＝ ΔOD×1.20×希釈倍率
U/mg ＝ U/ml×1/C
5.57 : p-Nitroanilineのミリモル分子吸光係数 (cm2/micromole)
1.0 : 光路長(cm)
C : 溶解時の酵素濃度(c mg/ml)
