TOYOBO Ideas & Chemistry バイオ事業総括部

PEROXIDASE

PREPARATION and SPECIFICATION

Appearance Reddish-brown amorphous powder, lyophilized
Activity GradeⅦ　60 Purpurogallin U/mg-solid or more
(RZ ≥ 0.6)

PROPERTIES

Stability Stable at −20℃
Molecular weight approx. 40,000 (by gel filtration)
Structure Glycoprotein with one mole of protohaemin Ⅸ
Inhibitors Cyanide, sulfide, fluoride, azide
Optimum pH 8.0 （Fig.2）
pH Stability 5.0−10.0 （Fig.3）
Thermal stability below 60℃ （Fig.4）

APPLICATIONS

This enzyme is useful for enzymatic determination of H2O2 in clinical analysis.

ASSAY

Principle

Principle

The appearance of Purpurogallin is measured at 420 nm by spectrophotometry.

Unit definition

One Purpurogallin unit causes the formation of one milligram of purpurogallin in 20 seconds under the conditions described below.

Method

Reagents

A. Pyrogallol solution 5% (W/V)(Should be prepared fresh).
B. H2O2 solution 0.147M［Dilute 1.67ml of 30% (W/V) H2O2 to 100ml with H2O］(Should be prepared fresh)
C. Phosphate buffer, pH6.0 0.1M
D. H2SO4 solution 2.0N

Procedure

1.Prepare the following reaction mixture in a test tube (32φ ×200mm) and equilibrate at 20℃ for about 5 minutes.

14.0ml H2O
2.0ml Pyrogallol solution (A)
1.0ml H2O2 solution (B)
2.0ml Phosphate buffer, pH6.0 (C)
Concentration in assay mixture
Phosphate buffer 15 mM
Pyrogallol 40 mM
H2O2 7.4mM

2.Add 1.0 ml of the enzyme solution* and mix.

3.After exactly 20 seconds at 20℃, add 1.0 ml of 2.0N H2SO4 solution (D) to stop the reaction.

4.Extract the produced purogallin from the above stopped reaction mixture in five times with 15ml portions of ether and fill up the combined ether extracts to 100ml with fresh ether.

5.Measure the optical density at 420nm against water (OD test).
At the same time, prepare the blank by first mixing the reaction with 1.0ml of 2.0N H2SO4 solution (D) after 20 sec-incubation at 20℃, followed by the addition of the enzyme solution and extracting with ether by the same procedure as the test (OD blank).

*Dissolve the enzyme preparation in ice-cold 0.1M phosphate buffer, pH6.0 (C), dilute to 3.0−6.0 purpurogallin U/ml with the same buffer and store on ice.

Calculation

Activity** can be calculated by using the following formula :

  • Volume activity (U/ml) =

  • ΔOD (OD test−OD blank)×Vt×df

    0.117×Vs

  • ＝ ΔOD×8.547×df

Weight activity (U/mg) ＝ (U/ml)×1/C

Vs : Sample volume (1.0ml)
0.117 : Optical density at 420nm corresponding to 1mg% of Purpurogallin in ether
df : Dilution factor
C : Enzyme concentration in dissolution (c mg/ml)
**One purpurogallin unit is equivalent to 13.5 international units determined with o-dianisidine at 25℃.

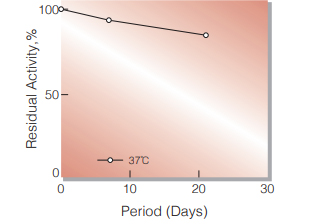

  • Fig.1. Stability (Powder form)

    Fig.1. Stability (Powder form)

    (kept under dry conditions)

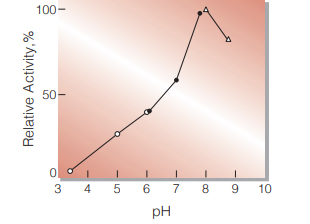

  • Fig.2. pH-Activity

    Fig.2. pH-Activity

    37℃, in 0.1M buffer solution; pH 3.3-6, Acetate; pH 6-7.5, K-Phosphate; pH 7.5-9, Tris-HCl

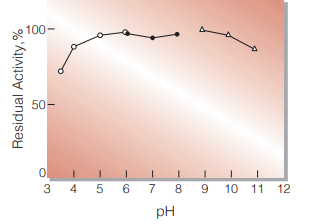

  • Fig.3. pH-Stability

    Fig.3. pH-Stability

    25℃, 20hr-treatment with 0.1M buffer solution; pH 3-6, Acetate; pH 6-8, K-Phosphate; pH 9-11, Glycine-NaOH

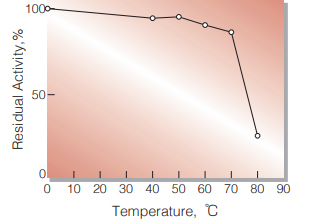

  • Fig.4. Thermal stability

    Fig.4. Thermal stability

    10 min-treatment with 0.05M K-Phosphate buffer, pH6.0 Enzyme concentration : 2 U/ml

活性測定法（Japanese）

1. 原理

原理

生成するPurpurogallinをエーテル抽出し,420nmの吸光度の変化で測定する。

2.定義

下記条件下で20秒間に1.0mgのPurpurogallinを生成する酵素量を1Purpurogallin単位(U)とする。

3.試薬

  • 5%(W/V)ピロガロール水溶液(用時調製)
  • 0.147M H2O2水溶液〔30%(W/V)H2O2溶液 1.67mlを蒸留水で希釈して100mlとする〕 (用時調製)
  • 0.1Mリン酸緩衝液,pH6.0(反応混液及び酵素希釈用)
  • 2.0N H2SO4溶液

酵素溶液：酵素標品を予め氷冷した0.1Mリン酸緩衝液, pH6.0で溶解し,同緩衝液で3.0〜 6.0Purpurogallin U/mlに希釈して氷冷保存する。

4.手順

1.試験管(32φ×200mm)に下記反応混液を調製し, 20℃で約5分間予備加温する。

14.0ml 蒸留水
2.0ml ピロガロール水溶液 (A)
1.0ml H2O2水溶液 (B)
2.0ml リン酸緩衝液 (C)

2.酵素溶液1.0mlを加え,反応を開始する。

3.20℃で正確に20秒間反応させた後, H2SO4溶液 (D)1.0mlを加えて反応を停止させる。反応停止後の混液から生成したPurpurogallinをエーテル15mlで抽出する。この操作を5回繰り返し,抽出液を合わせ,更にエーテルを加えて全量を100mlにする。この液につき420nmにおける吸光度を測定する(OD test)。

4.盲検は反応混液①を20℃で20秒間放置後, H2SO4 溶液(D)を加えて混和し,次いで酵素溶液1.0mlを加えて調製する。この液につき上記同様にエーテル抽出を行って吸光度を測定する(ODblank)。

5.計算式

  • U/ml =

  • ΔOD (OD test−OD blank)×希釈倍率

    0.117×1(ml)

＝ ΔOD×8.547×希釈倍率
U/mg = U/ml×1/C
0.117 : 1mg% Purpurogallinエーテル溶液の420nmにおける吸光度
C : 溶解時の酵素濃度(c mg/ml)
(注)1Purpurogallin単位は13.5国際単位(o-dianisidine を基質とし, 25℃の反応条件下)に相当する。
